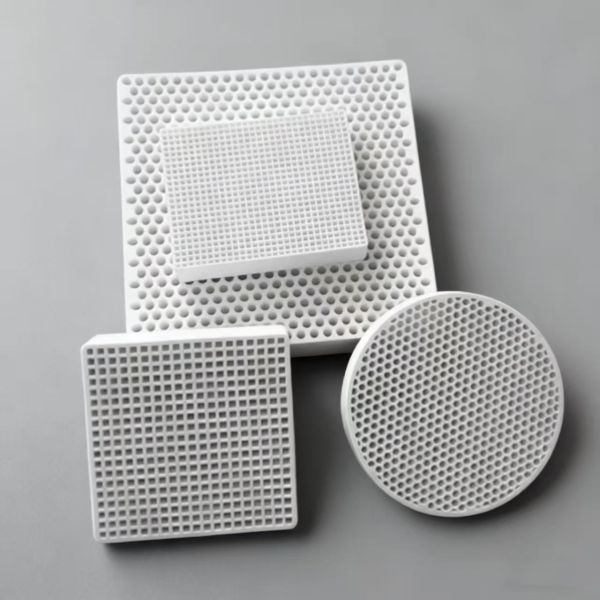

White Honeycomb Ceramic Catalysts Carriers 51% SiO2 For Gasoline Purification
A catalyst is a substance that accelerates the course of a chemical reaction without undergoing an irreversible change. Catalysts are important not only for the chemical industry, but also for solving environmental problems.
Ceramic structures with a high specific surface are used as carriers for catalysts. The high specific surface should be preserved after long-term use, as well as geometry and mechanical properties, which implies the carrier’s resistance to thermal and mechanical stresses and to chemical destruction.
Physical and Chemical Properties
| Items | Unit | Index |
| Chemical Composition | SiO2 | % | 49-51 |
| | Al2O3 | % | 33-35 |
| | MgO | % | 13-14 |
| Wall Thickness | mm | 100 CPSI | 0.43 |
| | | 200 CPSI | 0.32 |
| | | 300 CPSI | 0.30 |
| | | 400 CPSI | 0.18 |
| | | 600 CPSI | 0.15 |
| Crush Strength | A-axis | Mpa | | ≥16 |
| | B-axis | Mpa | | ≥3 |
| Water Absorption | % | | 25±2 |
| Coefficient of Thermal Expansion | 10-6/K-1 | | 0.8-2.0 |
| Maximum Operating Temperature | °C | | ≥1370 |
| Bulk Density | Kg/L | 0.43-0.75 |
Ceramic catalysts carriers are usually used:
-
for purification of gasoline and diesel automobile engines exhaust;
-
for chemical and petroleum refining processes;
-
for cleaning emissions of power plants and other industrial enterprises.
The main requirements for catalyst carriers include a large surface area, heat resistance, porosity, chemical inertness, mechanical strength.
Ceramic and metal carriers compete with each other: ceramics are often more stable and more economical, and therefore dominate in most sectors. Metal is sometimes preferable because of greater mechanical strength and the ability to manufacture catalysts of a certain geometry using wire, foil or thin-wall honeycomb structures.
Product Characteristics
● Large specific surface area: to ensure full access to the exhaust gas with the catalyst.
● Stable water absorption: to ensure the catalyst evenly firmly attached to the surface of the catalyst carrier.
● Warm-up: after start-up the engine, the temperature of the carrier can reach the catalyst activation temperature in the shortest possible time.
● Low exhaust resistance: the engine’s exhaust resistance is small, to ensure that doesn’t affect the engine performance.
● High strength: the operating environment of the catalyst carrier is in the bumpy car, so the catalyst carrier must be high strength without being external damage.
● Good assembly: the carrier is an exhaust assembly parts, only good appearance and precise dimensions can ensure perfect assembly.
Quality control:
